Stainless Steel Double Door Check Valve

Product Detail

OK-502-STAINLESS

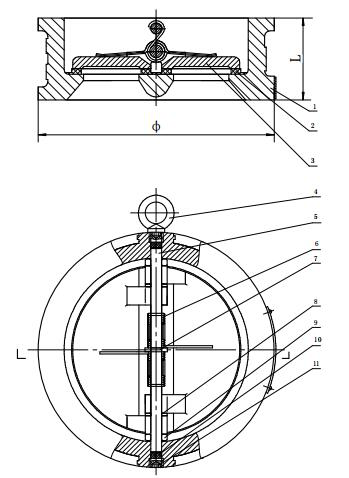

NO.	PART	Choose		QTY
1	BODY	CF8/CF8M		1
2	SEAT	EPDM/NBR/VITON		1
3	DISC	CF8/CF8M		2
4	EYE BOLT	SS304/SS316		1
5	SHAFT	SS304/SS316		2
6	SPRING	SS304/SS316		4
7	GASKET	F4		1
8	GASKET	F4		1
9	GASKET	F4		2
10	BUSH	F4		2
11	SCREW	SS304/SS316		4
TEST PRESSURE			SHELL	SEAL
		HYDROSTATIC	2.4 MPa	1.76 MPa
STANDARD	DESIGN CODE		API 609/EN 593
	INSPECTION & TEST		API 598/EN 12266
	END STANDARD		PN10/16 150LB 10K
	FACE TO FACE		API 609/EN 558

GENERAL CHARACTERISTICS Design in accordance with standard API609/EN 16767. Range: From DN 40 to DN 600. Mounting between flanges. Working positions: horizontal and vertical ascending, and vertical descending position < DN 150. Mounting in accordance with many standards connections. Low head loss. Stainless steel spring technology to avoid fluid hammer. STANDARDS Manufacture according to the requirements of the European directive 2014/68/EU «Equipment under pressure»: category III modulate H. Face to face according to standard API609/EN 558-1 serie 16. Mounting with flanges PN10/PN16/150LB/10K from DN50 to DN600

	PN10/16		125LB
Size	L	φ C	L	φ C	φ C
2"/DN50					PN10/16 125LB 10K
2-1/2"/DN65					PN10/16 125LB 10K
3"/DN80					PN10/16 125LB 10K
4"/DN100					PN10/16 125LB 10K
5"/DN125					PN10/16 125LB 10K
6"/DN150					PN10/16 125LB 10K
8"/DN200					PN10/16 125LB 10K
