Knife Gate Valve

Product Detail

OK-202-HANDWHEEL

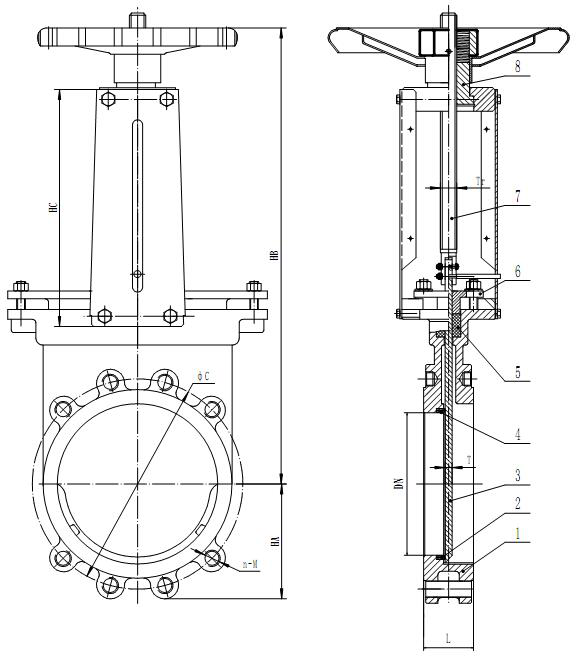

NO.	PART	Choose		QTY
1	BODY	GGG40		1
2	SEAT	EPDM/NBR		1
3	GATE	SS304/SS316		1
4	RETAINER	SS304/SS316		2
5	O-RING	NBR		5
6	GLAND	GGG40		3
7	STEM	SS304/SS316		1
8	LOCK NUT	BRASS
TEST PRESSURE			SHELL	SEAL
		HYDROSTATIC	1.5 MPa	1.1 MPa
STANDARD	DESIGN CODE		EN 593
	INSPECTION & TEST		EN 12266
	END STANDARD		PN10
	FACE TO FACE		EN 558

GENERAL CHARACTERISTICS Range : from DN 50 to DN 600. Function ON/OFF or regulation. Wafer threaded mounting ISO PN10. Unidirectional tightness, direction indication thanks to the arrow on the body. Small retention zone: the gate is guided in the body and has little clearance. Gland assembly: packing and O-ring (same materials as seat joint) to assure the elasticity and decrease the operating torque. Small head loss. Possibilityto regulate thick fluids with the adaptation of a diaphragm ring. STANDARDS Manufacture according to the requirements of the European directive 2014/68/UE «Equipments under pressure» : modulate H. On request : Product in accordance to european directive "Potentialy explosive atmospheres" N° 94/9/EC : ATEX II 2 GD c and ATEX II 3 GD c. Test procedures are established according to standards EN 12266-1, DIN 3230, BS 5154 and ISO 5208.

Size	HA	HB	HC	HC	φ C
2"/DN50	65	289	153	43	PN10
2-1/2"/DN65	70	313	172	46	PN10
3"/DN80	95	335	182	46	PN10
4"/DN100	108	380	215	52	PN10
5"/DN125	124	415	235	56	PN10
6"/DN150	135	470	260	56	PN10
8"/DN200	165	580	325	60	PN10
